Ore Stone Dryer

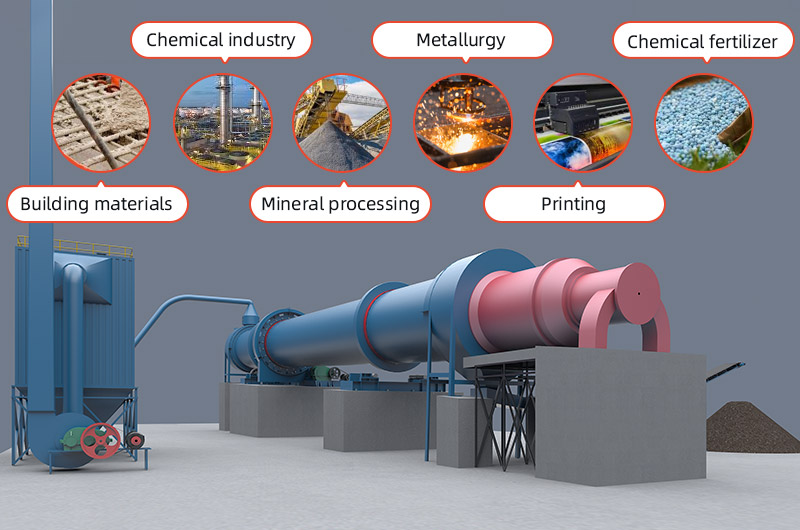

The ore dryer is suitable for drying slag, carbide slag, limestone, clay, river sand, iron ore, quartz sand, ore powder, ore concentrates, etc. which can be widely used in cement, mining, building materials, chemicals, metallurgy, chemical, slag, clay, and other industries. The equipment can be customized according to the type of material, depth of precipitation and user needs to meet the individual needs of each user.

 After entering the drying drum, the wet materials are spitting into the following working areas: First, the material guiding zone. The mineral slag enters this zone and contacts with high-temperature hot air to quickly evaporate water. Under the circumstance of the large lead angle guide plate, it is transferred to the next work area; the second is the copy board area. The mineral slag is the lifting flight drop and picks up in this area to form the material curtain state. At this time, the material in full contact with the hot blast. The moisture in the material slag is quickly evaporated and stripped into water vapor. The water vapor drawn away immediately by the induced draft fan to achieve the purpose of drying the mineral slag; the mineral slag is dried in this area to moisture content of less than 5% (or lower) In the loose state, after the heat exchange, the material reaches the required moisture state and enters the final discharge area. The third is the discharge area. The drum does not have a copy board in this area. The material is rolling in the area to the discharge port, completing the entire drying process.
