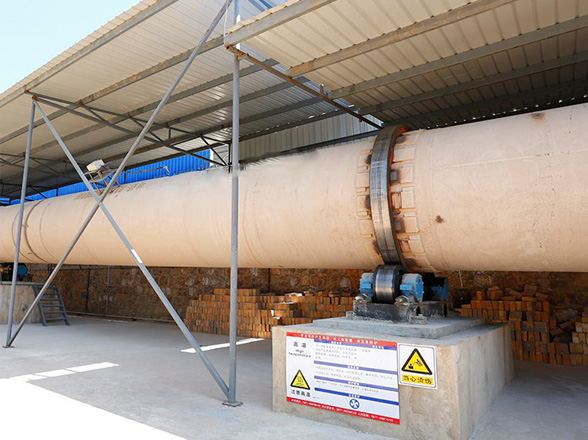

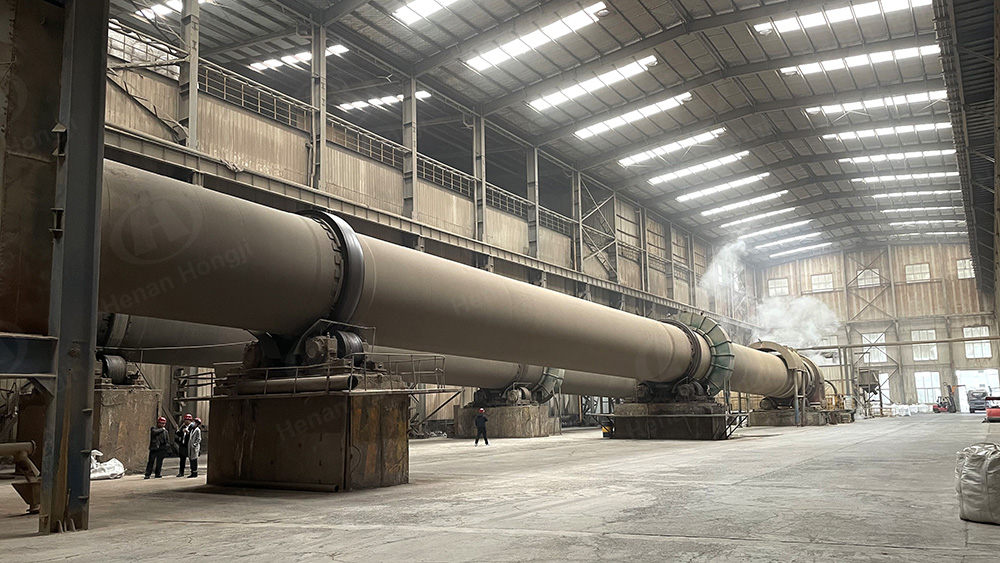

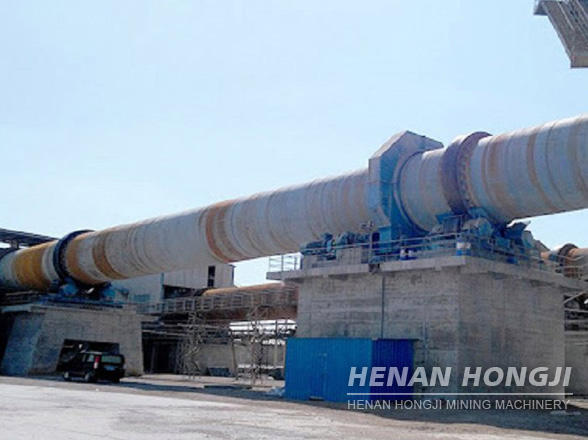

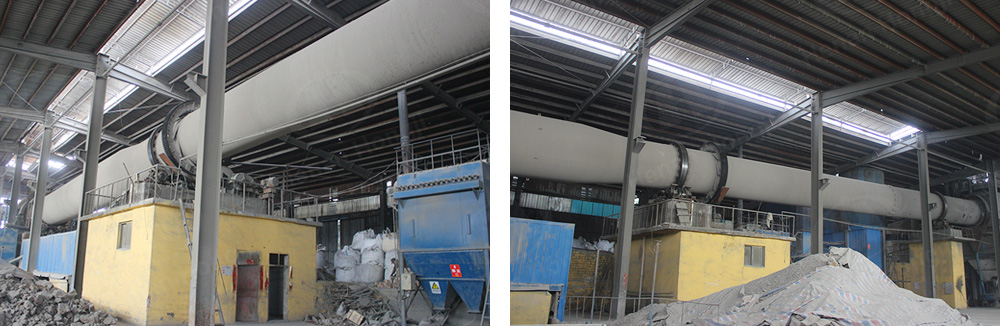

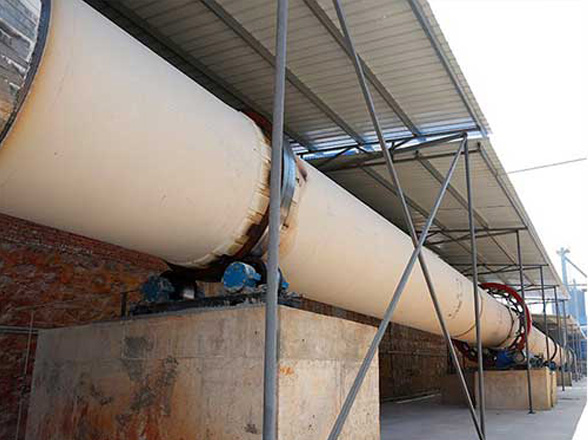

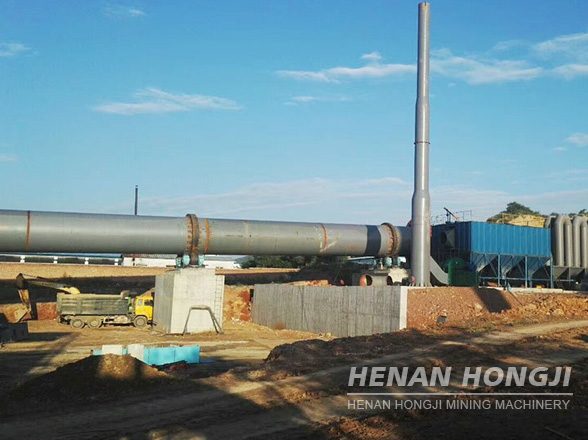

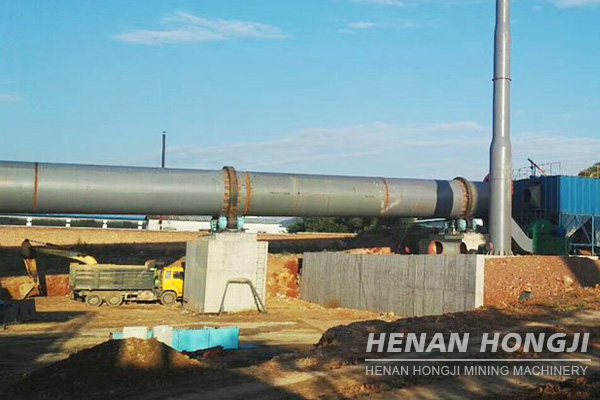

Zinc Oxide Rotary Kiln

Scope of application:
Mining industry,cement industry, metallurgical industry,construction materials industry,nonferrous industry, chemical industry,port industry,etc.

Chat Now Send E-mail

Product Description

Feature Table Parameters Service Support

Product Description

We are a professional rotary kiln manufacturer in China, providing flowchart and installation service. According to different fuels, rotary kiln can be classified into gas-fired rotary kiln, oil-fired rotary kiln and coal-fired rotary kiln. It is widely used for different materials with a processing capacity of 180-1, 000 tons per day, a dimension ofφ2.5×40m-φ4.8×68m and cement production capacity of 50-1000t/d, being easy to operate and durable in use.

Feature

1. After adding active Zinc Oxide rubber, can make the rubber has good wear resistance, tear resistance and elasticity.

2. Zinc Oxide as a white pigment.

3. Fine grained Zinc Oxide can be used as a medicine.

4. Zinc oxide on the UV absorption ability strong.

5. Zinc Oxide is also used in the field of pressure – sensitive, photo catalysis, photoelectric pole, paint, color TV, etc.

Crusher motor driven crushing high-speed rotating rotor cavity. From the upper nozzle material feedback to the machine, the impact of hammer impact shear grinding and high grinding speed. In the lower part of the rotor equipped with the sieve plate, the grain size of the grinding material is smaller, and the size of the sieve leakage through the screen is larger than that of the coarse particle size. The resistance of the sieve leakage is larger than that of the coarse particle size. It is left in the sieve plate to continue the hammer impact grinding, and finally discharged out of the machine through the sieve plate.

Table Parameters

Product specifications(m)	Kiln dimensions			Capacity (t/d)	Rotation speed (r/min)	Motor power (kw)	Total weight (t)
Product specifications(m)	Diameter (m)	Length (m)	Obliquity (%)	Capacity (t/d)	Rotation speed (r/min)	Motor power (kw)	Total weight (t)
Φ2.5×40	2.5	40	3.5	180	0.44-2.44	149.61	Kiln with shaft cyclone preheater
Φ2.5×50	2.5	50	3	200	0.62-1.86	187.37	----
Φ2.5×54	2.5	54	3.5	204	0.48-1.45	196.29	----
Φ2.7×42	2.7	42	3.5	320	0.10-1.52	198.5	----
Φ2.8×44	2.8	44	3.5	400	0.437-2.18	201.58	Outside disassemble kiln
Φ3.0×45	3	45	3.5	500	0.5-2.47	210.94	----
Φ3.0×48	3	48	3.5	700	0.6-3.48	237	Outside disassemble kiln
Φ3.0×60	3	60	3.5	300	0.3-2	310	Alumyte-alumina forge kiln
Φ3.2×50	3.2	50	4	1000	0.6-3	278	Outside disassemble kiln
Φ3.3×52	3.3	52	3.5	1300	0.266-2.66	283	Kiln with preheater precalcine
Φ3.5×54	3.5	54	3.5	1500	0.55-3.4	363	Kiln with preheater precalcine
Φ3.6×70	3.6	70	3.5	1800	0.25-1.25	419	Generating kiln for using ofterheat
Φ4.0×56	4	56	4	2300	0.41-4.07	456	Kiln with preheater precalcine
Φ4.0×60	4	60	3.5	2500	0.396-3.96	510	Kiln with preheater precalcine
Φ4.2×60	4.2	60	4	2750	0.4-3.98	633	Kiln with preheater precalcine
Φ4.3×60	4.3	60	3.5	3200	0.396-3.96	583	Kiln with preheater precalcine
Φ4.5×66	4.5	66	3.5	4000	0.41-4.1	710.4	Kiln with preheater precalcine
Φ4.7×74	4.7	74	4	4500	0.35-4	849	Kiln with preheater precalcine
Φ4.8×74	4.8	74	4	5000	0.396-3.96	899	Kiln with preheater precalcine
Φ5.0×74	5	74	4	6000	0.35-4	944	Kiln with preheater precalcine
Φ5.6×87	5.6	87	4	8000	Max4.23	1265	Kiln with preheater precalcine
Φ6.0×95	6	95	4	10000	Max5	1659	Kiln with preheater precalcine
