Cement ball mill

The cement mill is the key equipment for re-grinding cement clinker after pre-grinding by system ingredients. Cement grinding is one of the important cement equipment.

Scope of application:
cement, silicate products, new building materials, refractory materials, glass ceramics and other production industries.

Chat Now Send E-mail

Share With:

Product Description

Feature Table Parameters Service Support

Product Description

The cement mill is the key equipment for re-grinding cement clinker after pre-grinding by system ingredients. Cement grinding is one of the important cement equipment. It plays a vital role in the cement production line and cement production process. Cement mills are mainly used in cement, silicate products, new building materials, refractory materials, glass ceramics and other production industries.

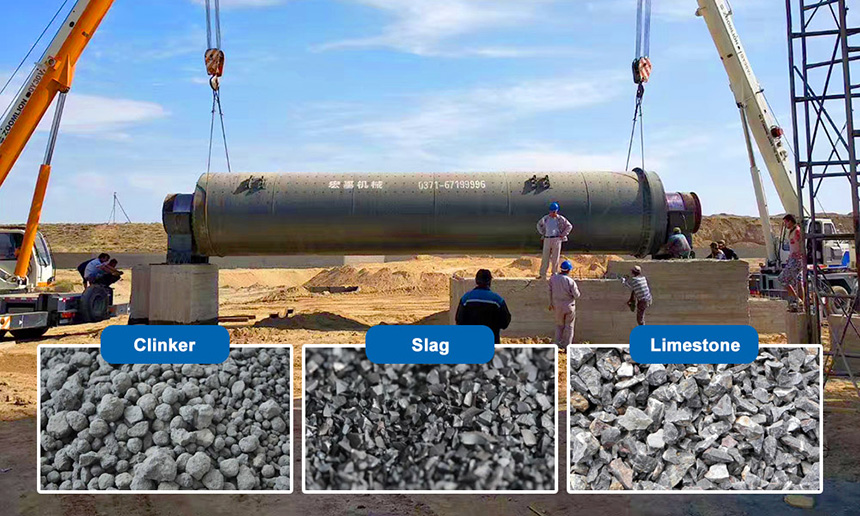

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Feature

● 1. High grinding ratio.

● 2. Large production capacity.

● 3. Easy operation, stable& reliable performance.

● 4. Smaller built-up space in comparison with mills seated on trunnion bearings.

● 5. Wide applicability and Great yield.

● 6. Oil mist lubrication device guarantees the lubrication of all gears.

Table Parameters

Product specification (m)	Speed reduction ratio	Motor power (kw)	Production capacity (t/h)	Total weight (t)
Φ1.83×7	4.5	245	6.5-8	43.8
Φ2.2×7.5	5	380	8-10	64.8
Φ2.2×11	35.5	630	12-13	104.6
Φ2.2×13	35.5	630	16-18	114
Φ2.4×13	35.5	800	20-23	130.6
Φ2.6×13	19.5	1000	28-32	158
Φ3×9	41.2	1000	28-36.5	167
Φ3×11	42.8	1250	36-47	180
Φ3.2×13	36.5	1600	45-50	225
Φ3.5×13	5.84	2000	60-65	275
Φ3.8×13	16.5	2500	60-62	320
Φ4.2×13	15.6	3530	85-87	380
Φ4.6×14	14.6	4200	120-135	485
