Ultra Fine Grinding Mill

Ultra fine grinding mill, also known as micro powder mill or ultrafine mill, is a grinding equipment designed for producing micro powders with high fineness. It is designed to grind materials into extremely fine particles or powders with high precision an

Scope of application:
Metallurgy, building materials, chemical engineering, and mining, etc.

Chat Now Send E-mail

Product Description

Feature Table Parameters Service Support

Product Description

Ultra fine grinding mill is capable of grinding various materials with hardness levels ranging from low to medium. It can handle materials with a Mohs hardness of up to 9 and a moisture content of up to 6%. Some common materials processed by micro powder grinding mills include limestone, calcite, marble, talc, barite, dolomite, and kaolin, etc.

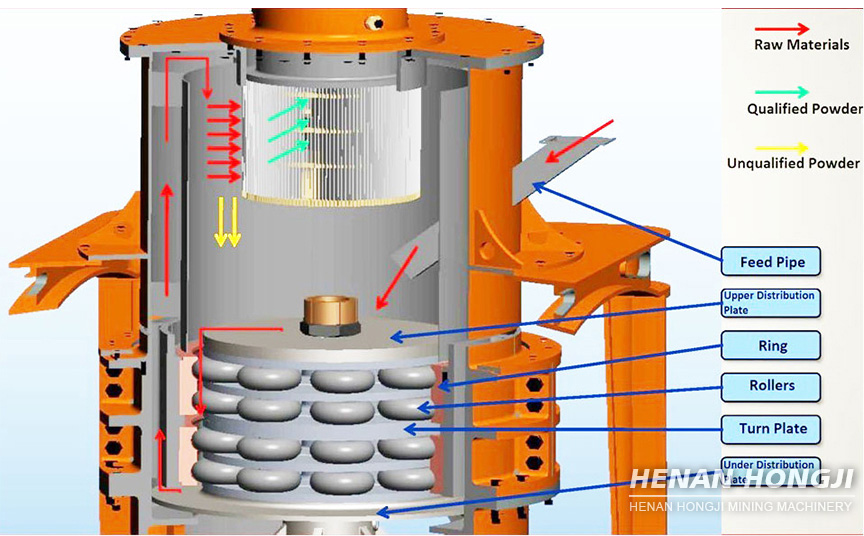

Work Principle:

Ultra fine grinding mill utilizes a combination of attrition and impact forces to reduce the size of the particles. It operates by rotating a set of grinding rollers or discs at a high speed, which creates a strong centrifugal force. The material is fed into the grinding chamber and is subjected to grinding, crushing, and impact between the rollers or discs and the grinding ring.

Feature

• The yield is 40% higher than other mills.
• High utilization rate of Wear material:2-5years.
• Adjustable particle size:325-3000mesh.
• High safety and reliability. The design of the mill is rigorous, so no screw loosening to damage the machine.
• Closed system, so it is the green and ideal equipment for environment protection.

Table Parameters

Model	HJM80	HJM80A	HJM90L	HJM100L-H	HJM100P	HJM125L	HJM1680L
Ring Diameter (mm)	800	800	900	1000	1000	1250	1680
Ring Number (PCS)	3	3	3	4	4	4	4
Input Size (mm)	<10	<10	<10	<15	<15	<20	<20
Output Size (mesh)	150-3000	150-3000	150-3000	150-3000	150-3000	150-3000	150-3000
Capacity (t/h)	0.5-5.5	0.5-5.5	0.8-6.5	1.2-10	1.2-11	2.5-20	5-45
Outlet Size LWH (mm)	86054139 6050	104543393 6626	117353952 7525	145073633 7562	143624200 7562	192614406 8591	250675414 9007
Main Motor Power (kw)	75	75	55*2	132/75*2	132/75*2	185	315
