GGBS Grinding Plant

Materials: Granulated blast furnace slag

Main Equipment: Ball mill or vertical mill

Matching Equipment: Jaw crusher, air flow classifier, dust removal system

Product Details

Introduction

GGBS grinding Plant refers to a complete production line that uses Granulated Blast Furnace Slag (GGBS) as raw material and processes it into high-fineness slag micro-powder through grinding technology. The GGBS grinding line is an important supporting process in the cement and concrete industries, aiming to convert blast furnace slag into high-performance admixtures, enhance the durability of concrete and reduce carbon emissions.

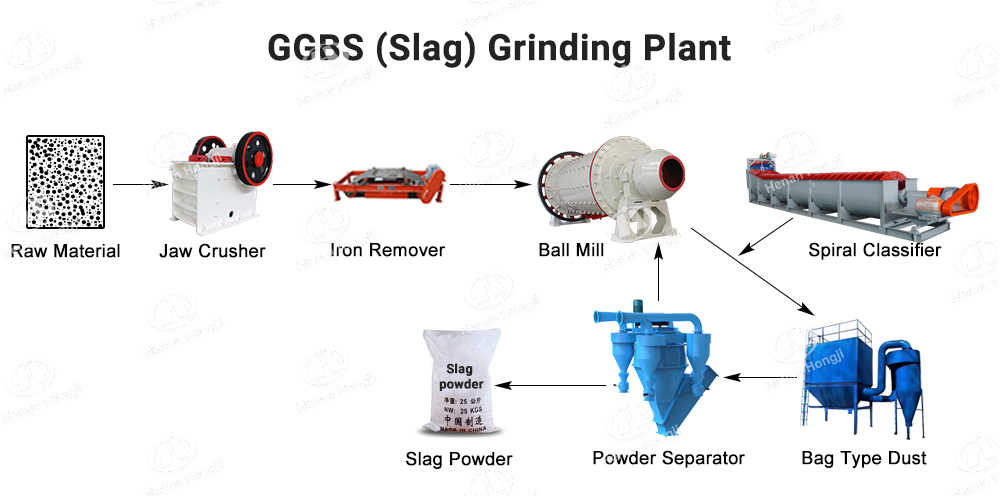

Process Flow

1.Raw material pretreatmen

Cooling and crushing: High-temperature liquid blast furnace slag is quenched in water and cooled to form granular slag (with a particle size of approximately 5 to 20mm), which is then roughly crushed by jaw crushers and cone crushers.

Iron removal and screening: Magnetic separators are used to remove metal iron impurities, and vibrating screens are used for classification to ensure the uniformity of particles.

2.Grinding and classification

Grinding equipment:The vertical mill is characterized by high efficiency and energy conservation, and is suitable for large-scale continuous production.Ball mills are suitable for small-scale applications or scenarios with extremely high requirements for product fineness

Grading system:The fineness of the finished product is controlled by an air flow classifier (specific surface area ≥400㎡/kg, usually 420-500㎡/kg is required). The substandard particles are returned to the grinding chamber for recycling treatment.

3.Dust removal

Equipped with pulse bag dust collectors and wet dust removal systems, the dust emission concentration is ≤10mg/m³ (conforming to the GB 4915-2013 standard).

4.Finished product storage and packaging

The finished slag micro-powder is pneumatically conveyed to the silo for moisture-proof storage.

The packaging specifications are bulk (for direct use in cement plants) or bagged (50kg/ bag).

Process Flow

Equipments	Function	Applicable scenarios
Jaw Crusher	Roughly Crush Large Pieces of Slag	Raw Material Pretreatment Stage
Ball Mill	Grind Finely to The Target Particle Size	Slag With Higher Hardness
Vertical Mill	High-Efficiency Grinding + Drying	Large-scale Continuous Production
Air Flow Classifier	Classify by Particle Size to Control The Fineness of The Finished Product	Scenarios With Strict Granularity Requirements
Dust Removal System	Collect Dust	Environmental Protection
