Hydraulic Cone Crusher

Hongji HP cone crushers are an excellent choice as secondary stage crushers in combination with a jaw or a primary gyratory crusher or in the third or fourth crushing stage. Thanks to their built-in versatility and automatic control system, these crushers

Scope of application:
Aggregate field, concrete mixing plant, dry mortar plant desulfurization, quartz sand, etc. Mobile cone crusher available

Chat Now Send E-mail

Share With:

Product Description

Feature Table Parameters Service Support

Product Description

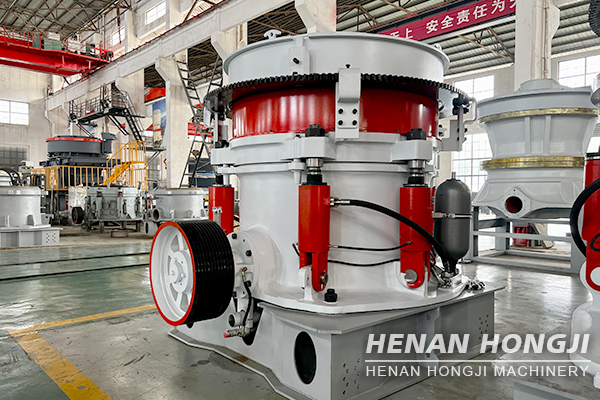

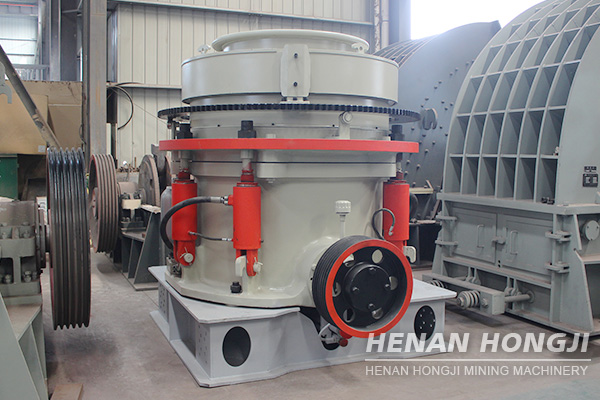

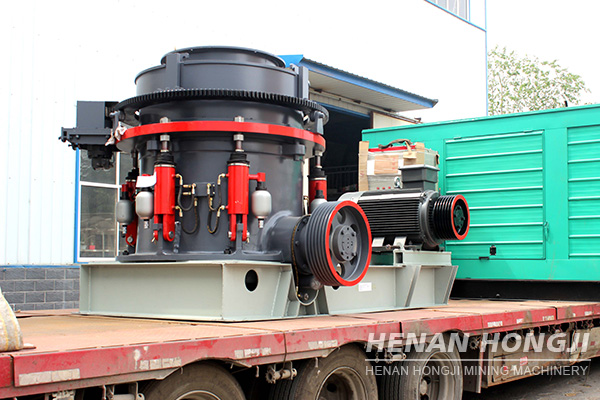

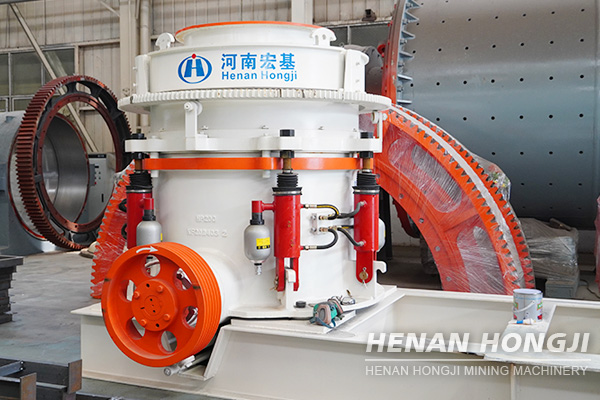

The Hydraulic Cone Crusher is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgies and so on. The hydraulic cone crusher can crush materials with middle and high hardness such as ironstone, copper ore, granite, basalt, cobblestone, marble, limestone and so on. The Hydraulic Cone Crusher is widely used in highly automatic crushing line which has strict requirements for the fineness of the end products and crushing ratio.

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Feature

● 1. The main spare parts like mantle and bowl liner are made of special alloy steel, extending the service life of spare parts by 30%.
● 2. The interior of the crusher is protected from dust by a self-lubricating seal ring.

● 3. Quiet operation and long life thanks to bevel gears with hardened, spiral-cut teeth.

● 4. Product curve and capacity can be optimized by adjusting the eccentric bushing supplied with the crusher.

● 5. High reduction ratio in the secondary crushing stage.

● 6. This machine adopts the principle of lamination crushing, the end outputs products are mostly cubic shape, better serve as high quality aggregates.

Table Parameters

Model	Head diameter	Feed opening	Power
HP3	1000 mm (39")	220 mm (8 3/4")	250 kW (350 hp)
HP4	1120 mm (44")	252 mm (9 7/8")	315 kW (400 hp)
HP5	1250 mm (49")	317 mm (12 1/2")	370 kW (500 hp)
HP6	1400 mm (55")	331 mm (13")	500 kW (650 hp)
HP100	735 mm (29")	150 mm (6")	90 kW (125 hp)
HP200	940 mm (37")	185 mm (7")	132 kW (200 hp)
HP300	1120 mm (44")	241 mm (9 1/2")	220 kW (300 hp)
HP400	1320 mm (52")	304 mm (12")	315 kW (400 hp)
HP500	1520 mm (60")	351 mm (13 3/4")	355 kW (500 hp)
