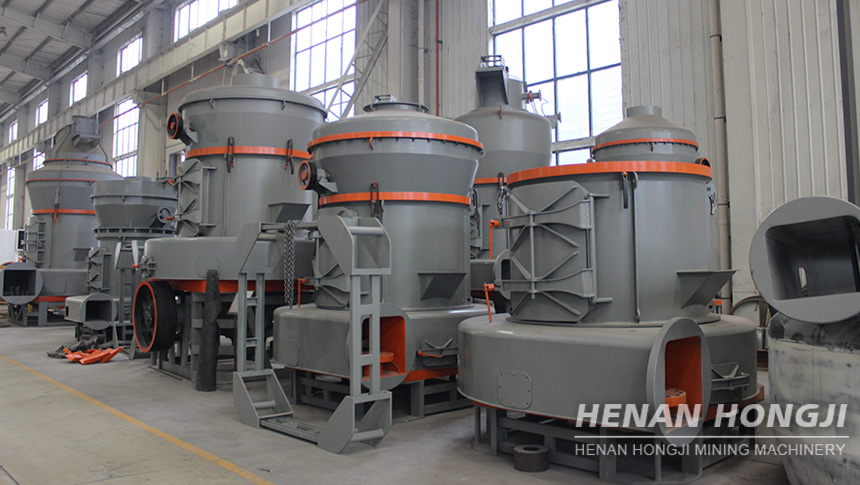

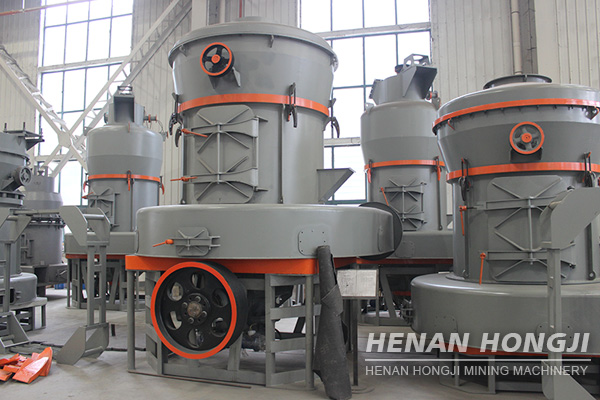

Raymond Mill

Raymond mills take advantages of small covered area, low investment costs and low consumption, which can be used for the high-fine power processing in minerals, chemicals, construction and other industries.
Scope of application:
mining, metallurgy, chemical, building materials and other industries.
Share With:
Product Description
Raymond mills take advantages of small covered area, low investment costs and low consumption, which can be used for the high-fine power processing in minerals, chemicals, construction and other industries. Raymond mills can be used to process more than 280 non-flammable and explosive materials with a Mohs hardness of less than 9.3 and a humidity of less than 6%, such as barite, calcite, and potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation, etc.

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Feature
●     1. The whole mill is of spatial structure, less premise and systemic strong.
●     2. Even granularity, sieving rate 99%, which is unapproachable for other mills.
●     3. The driving device applies inclosed gear box and belt pulley, so the transmission is calm and the operation is reliable.
●     4. High wear resistance and reliable performance.
●     5. Centralized controlling of the electrical system, unmanned operation , easy maintenance.
●     6. Less dust pollution, low noise.


 yuanli
Table Parameters
Model Number Diameter (mm) Height (mm) Inside diameter (mm) Height (mm) Maximum feed size (mm) Output size (mm) Power of main frame (kW) Capacity (t/h)
3R2115 3 210 150 630 150 15 0.044-0.165 15 1.2-1.8
3R2615 3 260 150 780 150 15-20 0.044-0.165 18.5 1.8-2.5
3R2715 3 270 150 830 150 15-20 0.044-0.165 22 2.3-2.8
3R3016 3 300 160 880 160 15-20 0.044-0.165 30 2.6-3.2
4R3216 4 320 160 970 160 20-25 0.044-0.165 37 3.2-4.5
Service Support


- 48-hour idling test machine before leaving the factory.

- You can take the materials to the factory test machine.

- We will customize the solution according to your needs.
yuanli
