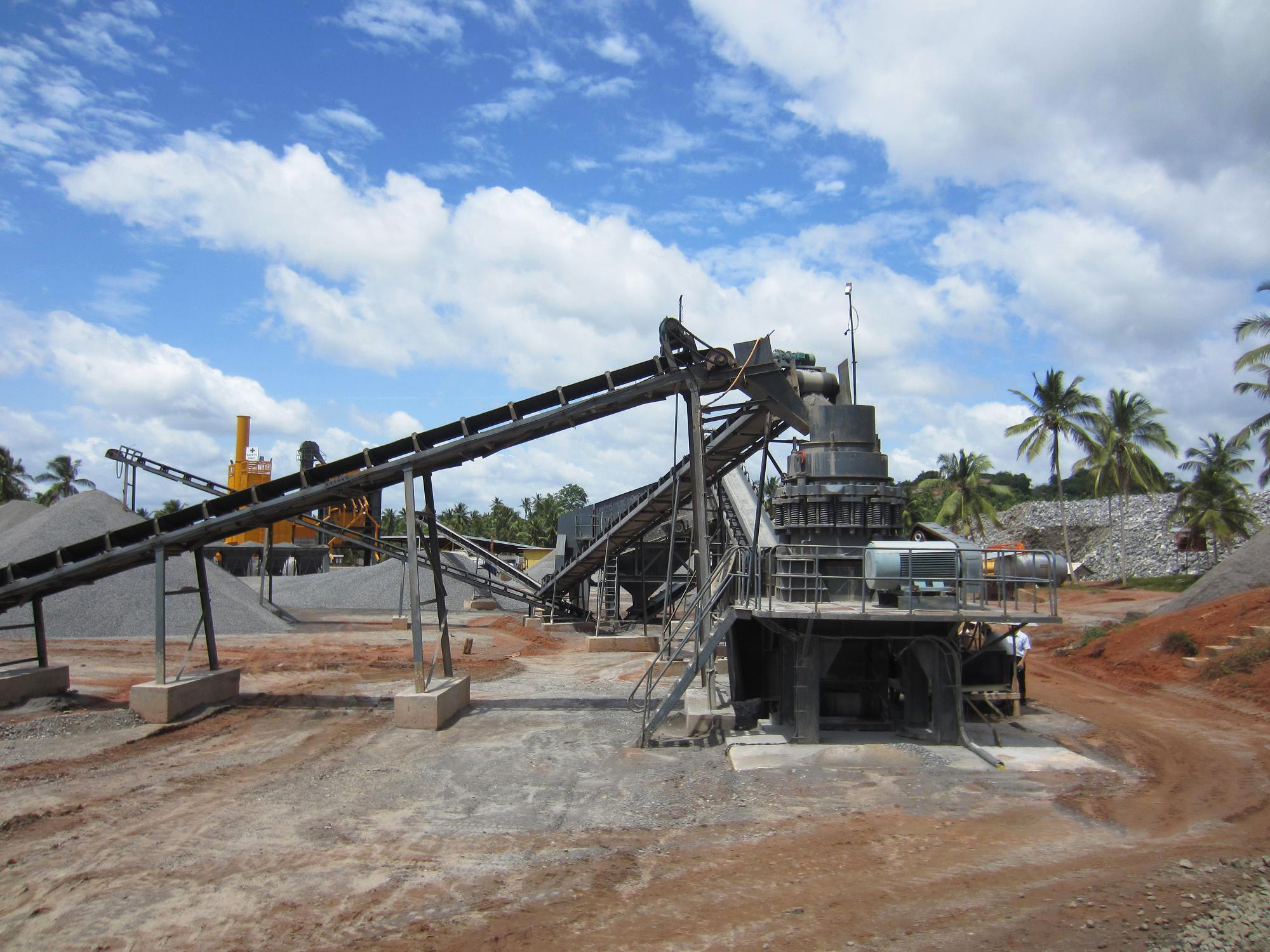

CSB240 Spring Cone Crusher was sent to South Africa

Today, We started to ship the CSB240 Spring Cone Crusher for our South Africa customers, which we signed a cooperation agreement with our customers. The Spring Cone Crusher was used for Crushing all kinds of hard materials.

Spring cone crusher is widely used in the metallurgy, construction, road building, chemical and other industries. It is suitable to crush the high or medium hardness rock and minerals, such as iron ore, cooper ore, limestone, quartz, granite, basalt, dolerite, etc. The type of crushing cavity depends on the usage of rock and minerals: the standard type applies to medium crushing; the medium type applies to fine crushing; the short head type applies to for super fine crushing.

Spring cone crusher consists of frame, transmission device, eccentric hollow shaft, bowl bearing, crushing cone, adjusting device, concave holder, spring, hydraulic pressure station, etc. When the crusher works, the motor drives the eccentric shaft sleeve through the horizontal shaft and a pair of bevel gears. Under the forces of eccentric shaft sleeve, the shaft axis of crushing cone keeps in rotary pendulum moment, so that the space between the mantle and concave will regularly reduce and increase. Meanwhile, the raw materials are crushed under the forces of squeezing and bending.

Hongji CS series cone crushers combine the rotating bowl with piston into one crusher. This patented Multi-Action technology translates to lower operating costs, high uptime and consistent high-quality output. CS Series cone crushers were built for decades of reliable service. The design was as simple as possible with features that were user friendly, CS series cone crushers are ideal for secondary, tertiary and quaternary stages in hard and soft rock applications. Mobile cone crusher available.

Feature

●   1. Continuous rotation of the operated cone body and high productivity.

●   2. Easy to press, impact and crush and low power consumption.

●   3. Even particle size of products and uniformly surface wear of movable cone.

●  4. Simple structure: frame, horizontal axis, movable cone, balance wheel, eccentric bushing, upper crushing wall (fixed cone), down crushing wall (movable cone), fluid coupling, lubrication system, hydraulic system, control system, etc.

●  5. The movable cone swings close to discharge opening of crushing cavity, which intersects an equal parallel strip between them to make end products granularity. The feed opening is not large, which can deal with the primary crushed materials.

●  6. This kind of cone crusher adopts dry oil and water sealing avoiding dust entering and keeping clean.

Henan Hongji Mining Machinery Co., Ltd. is a large-sized ball mill manufacturer, and our ball mill has many advantages such as simple and reasonable structure, high independent impact crushing ability, super low operational cost and the most competitive price. Welcome all new and old customers come to our company for inspection and purchase.
